The Vehicle
Vehicle: BMW 330i – N54 Engine
Engine: BMW N54 3.0-litre Inline Six, Twin Turbo
Configuration: Right-Hand Drive
Upgrades: RB TD04-Based Turbochargers
Project Type: Performance Engineering and Bespoke Fabrication
Services Provided:
- Custom aluminium charge pipe fabrication
- Performance turbocharger installation support
- Precision aluminium welding
- Bespoke pipework design
- Heat management
- High-performance engine modifications
The BMW N54 is a highly regarded turbocharged six-cylinder engine with considerable tuning potential.
Its twin-turbo configuration provides a strong foundation for substantial power increases, but fitting larger or differently configured turbochargers can create significant packaging challenges, particularly in right-hand-drive vehicles.
Customer Requirements
The customer wanted to upgrade the car with a pair of RB turbochargers based on the TD04 design.
These uprated turbos offered the potential for a substantial increase in engine performance, with power outputs exceeding 660 bhp possible when combined with suitable supporting modifications.
However, the RB turbochargers were clocked differently from the original units, changing the orientation of the charge pipe outlets.
The available silicone pipework could be made to fit, but it passed extremely close to the steering column in an area exposed to considerable exhaust and turbocharger heat.
The owner was concerned about the durability of the silicone hoses under these conditions.
Replacing damaged charge pipes was also a major undertaking because access required removal of the front subframe.
The customer therefore wanted a more permanent solution that would:
- Replace the main silicone charge pipe sections with aluminium pipework.
- Accommodate the differently orientated RB turbochargers.
- Provide adequate clearance around the steering column and chassis.
- Withstand the demanding temperatures and pressures of the upgraded engine.
- Reduce the likelihood of repeated hose replacement.
- Connect both turbocharger outlets efficiently to the intercooler.
The challenge was to achieve all of this within an extremely confined space.
The Engineering Challenge
The greatest difficulty was the position of the turbocharger outlets in relation to the right-hand chassis rail and steering column.
Unlike the original turbochargers, the upgraded RB units directed their outlets towards an area with very limited available clearance.
The pipework needed to travel from both turbochargers, negotiate the steering column and rise towards the intercooler connection.
There was no straightforward route for conventional aluminium bends.
The required path was effectively a series of tight, three-dimensional curves, with the pipes needing to spiral around the available space without interfering with the steering system or surrounding components.
The fabrication also had to account for movement, vibration and heat.
An entirely rigid installation would not have been appropriate, particularly as the turbochargers did not incorporate the V-band connections that might otherwise have simplified the design.
The solution required a combination of precisely fabricated aluminium sections and carefully positioned flexible connections.
Engineering Approach
Rather than attempting to adapt the existing silicone hoses, we decided to manufacture a purpose-built aluminium charge pipe system.
The design needed to make the most of every available millimetre while retaining suitable clearances from the steering column, chassis and other components.

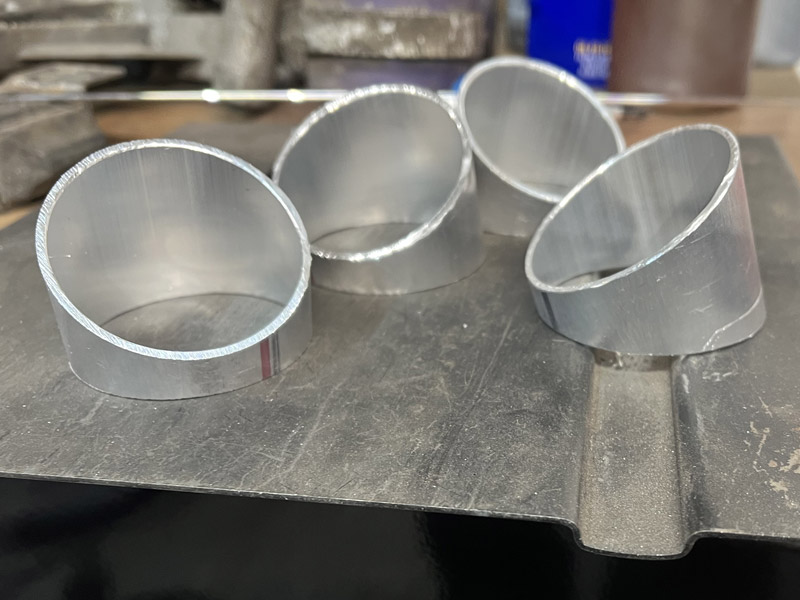

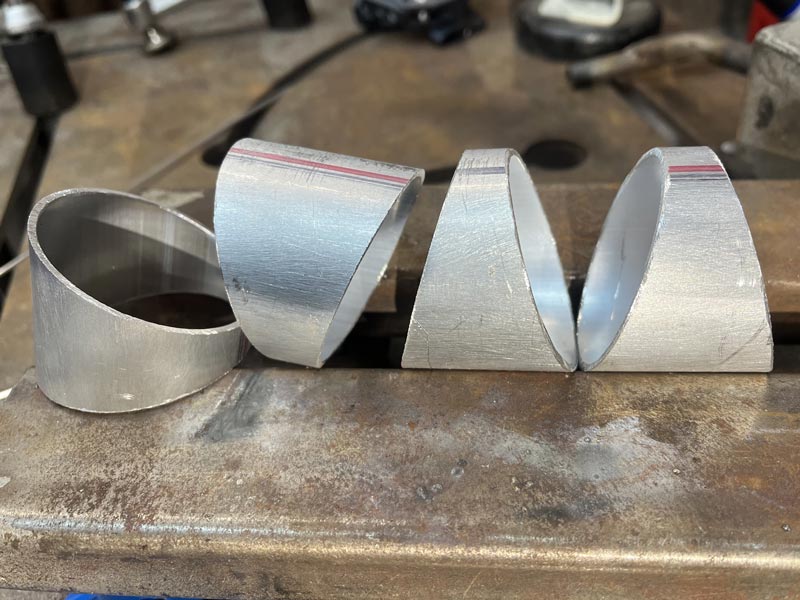

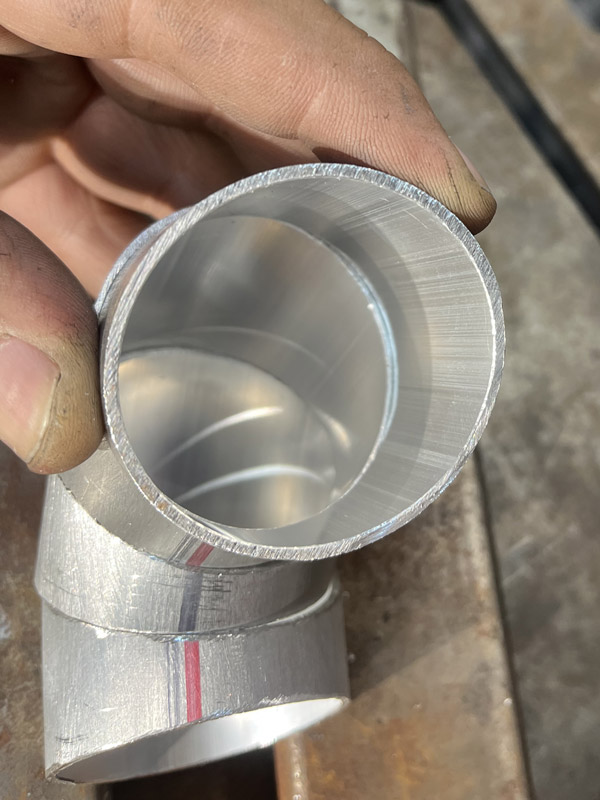

To achieve the required routing, we opted to construct the pipework using a series of accurately cut aluminium sections, commonly known as pie cuts.
This technique allows complex curves and changes of direction to be created where conventional pre-formed bends would be unsuitable.
Each section could be individually positioned to follow the required route before being welded into the final assembly.
The design also incorporated a fabricated junction to combine the airflow from both turbochargers before directing it towards the intercooler.
Work Carried Out
Bespoke Aluminium Pipe Fabrication
The first stage involved establishing the precise route the charge pipes would need to follow.

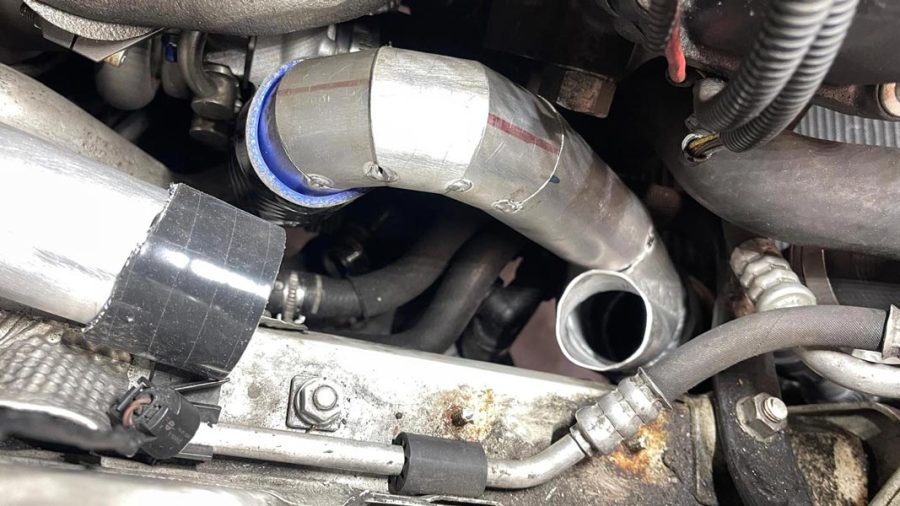

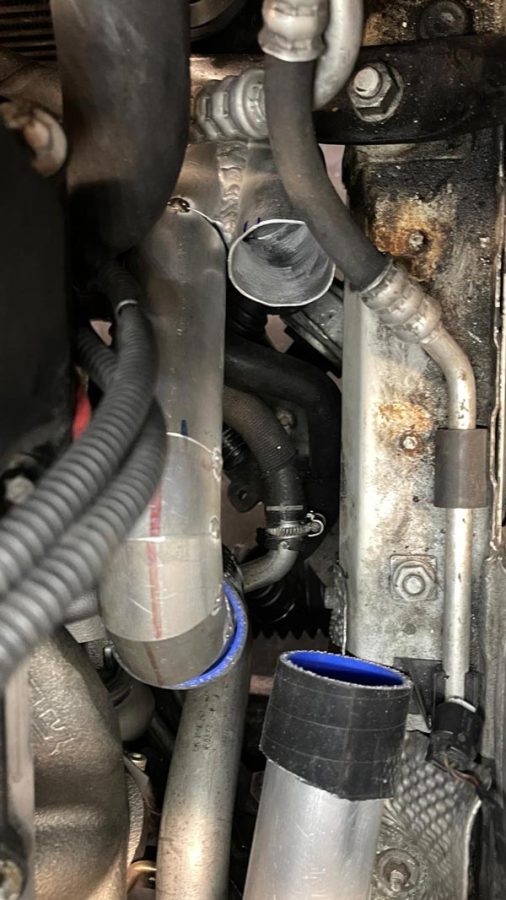

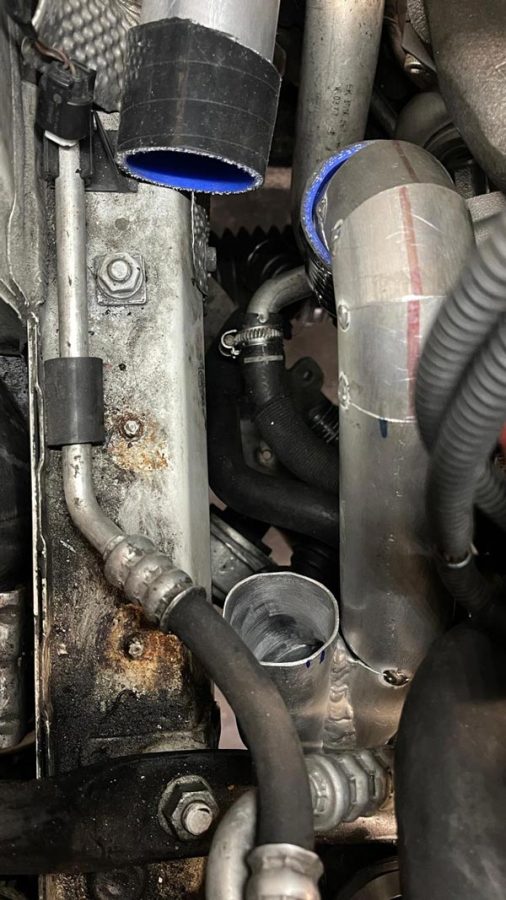

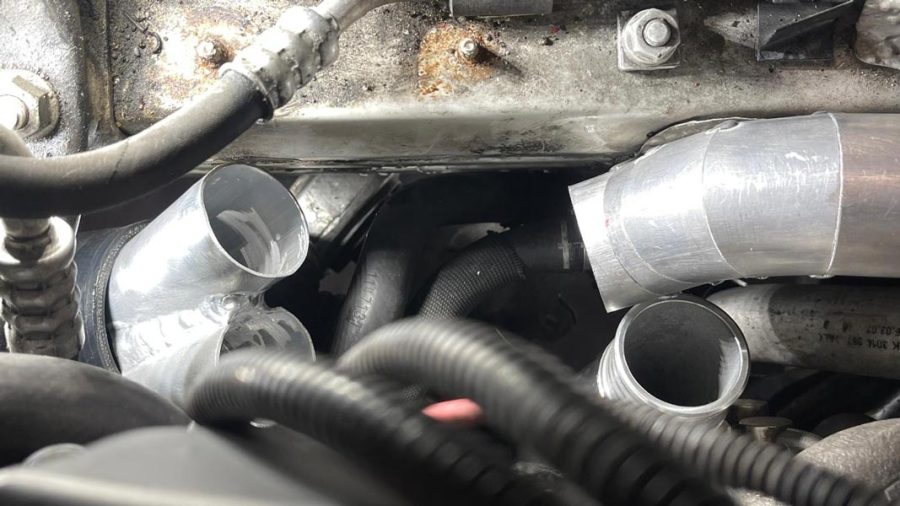

With the turbochargers positioned close to the right-hand chassis rail, the pipework had to negotiate the steering column while maintaining sufficient clearance from the surrounding components.

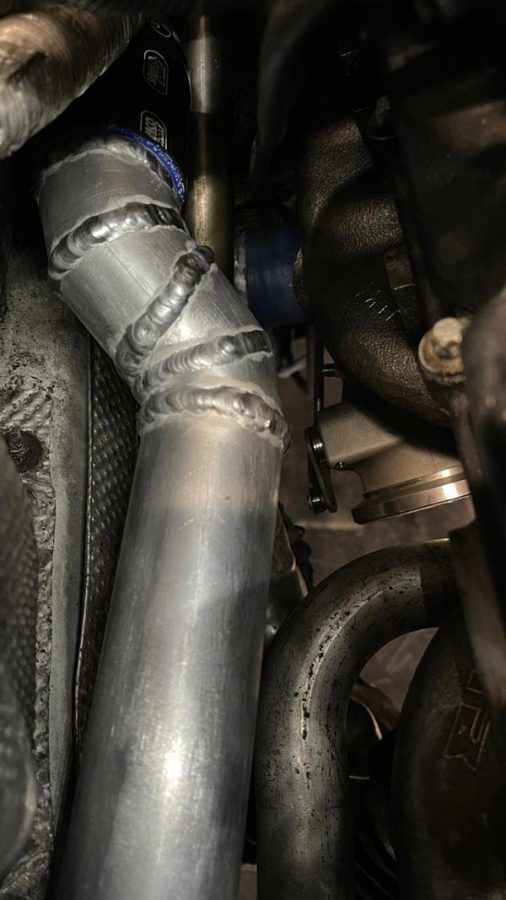

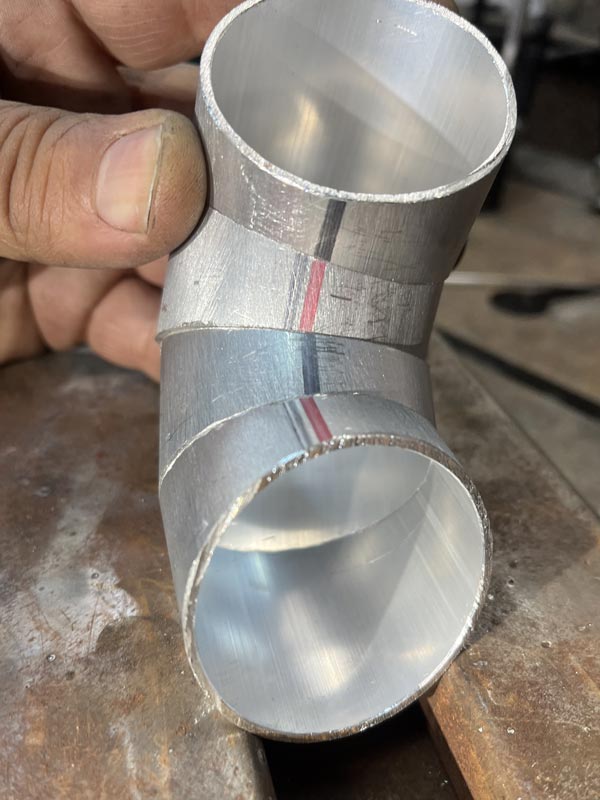

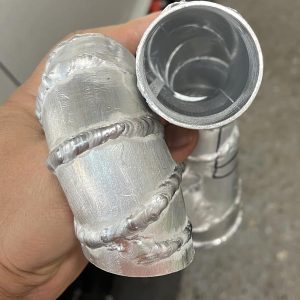

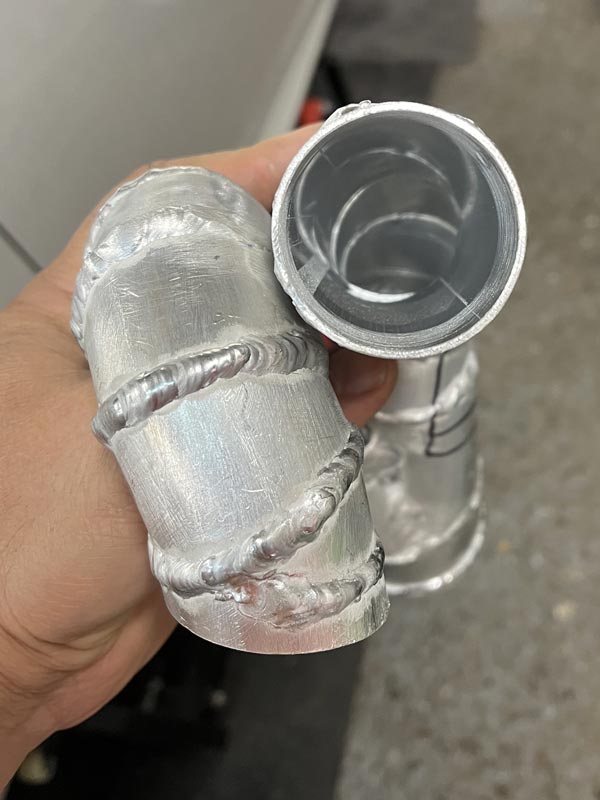

We fabricated the pipes using a series of aluminium pie cuts, carefully assembling the individual sections to create the complex curves required.
This approach allowed the pipework to follow a route that would have been extremely difficult to achieve using conventional bends.
Each section was positioned and checked to ensure the completed assembly would fit within the available space.
Twin Turbo Pipe Junction
With two turbochargers supplying compressed air, the individual outlets needed to be brought together before connecting to the intercooler.

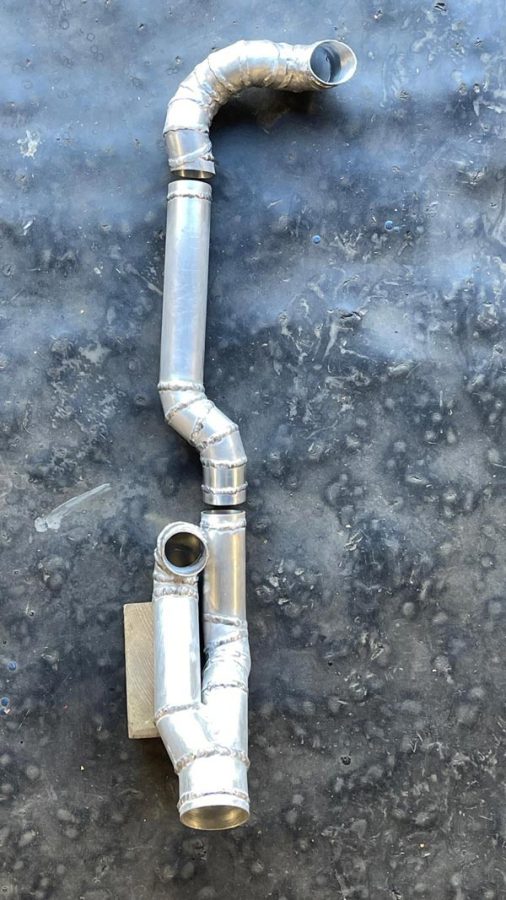

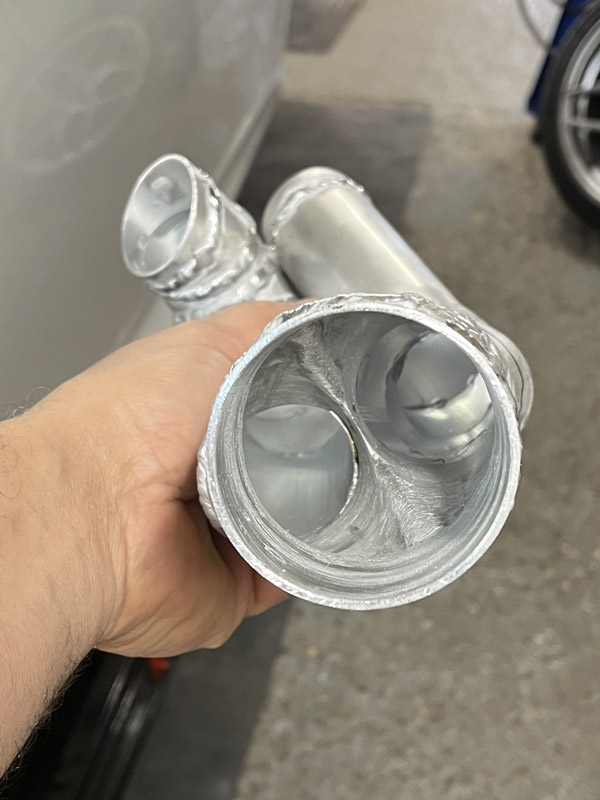

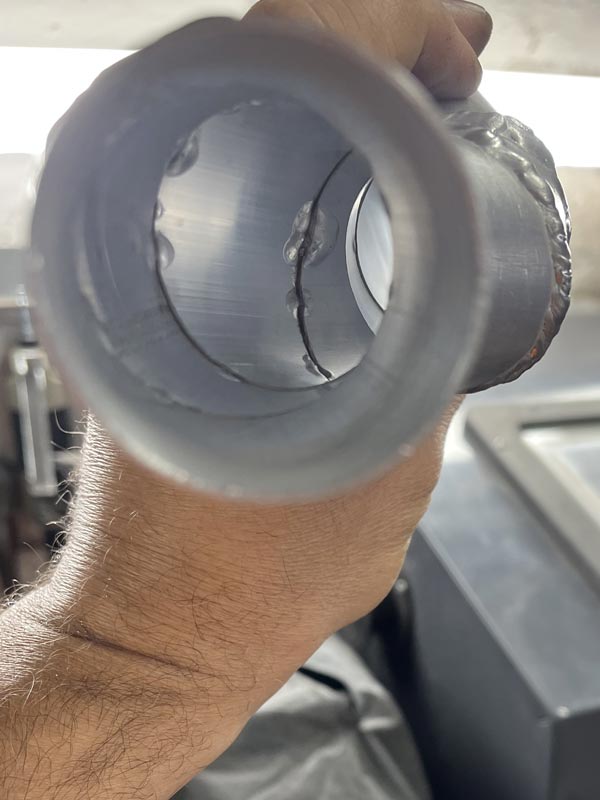

We designed and fabricated a bespoke joining section to combine the two charge pipes into a single outlet.
This component formed an important part of the installation, allowing the two separate pipe runs to connect with the existing intercooler system while accommodating the restricted space.

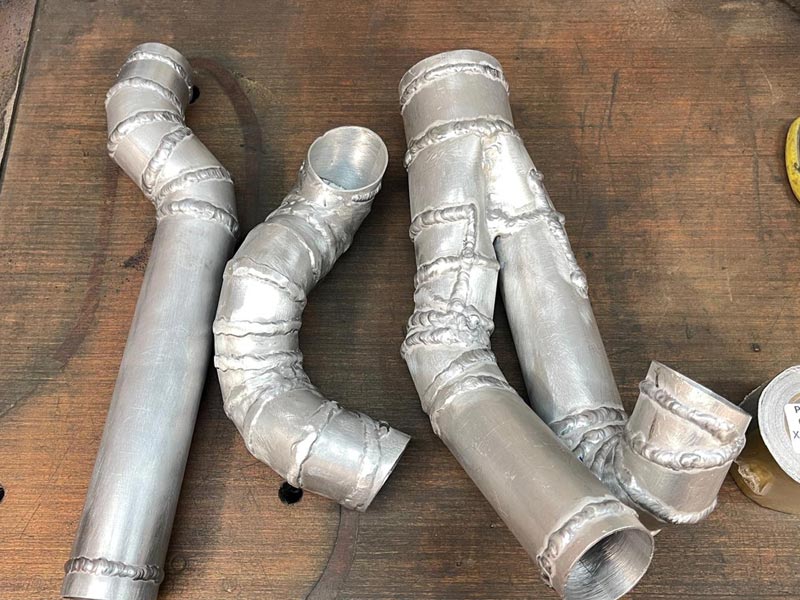

Three-Piece Pipework Design
The RB turbochargers did not feature V-band connection lips suitable for a fully rigid pipework installation.
To overcome this, we designed the aluminium pipework as three separate sections.

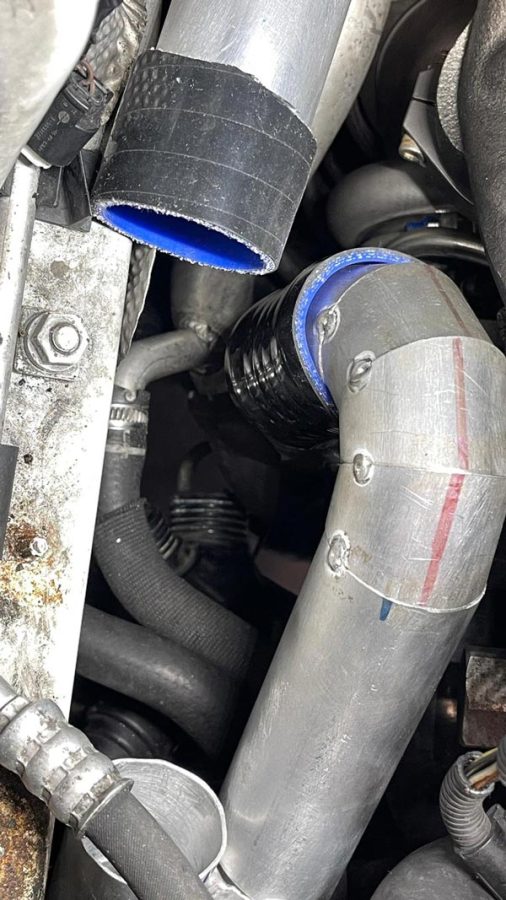

These were connected using short silicone hose joiners secured with high-quality turbo clamps.
The arrangement provided the flexibility required at the connections while replacing the majority of the original silicone pipework with more durable aluminium components.
It also allowed the complex assembly to be installed and positioned within the confined engine bay.
Heat Management
Heat was another important consideration.
The charge pipes run close to the turbochargers and exhaust components, where temperatures can become extremely high during demanding driving.

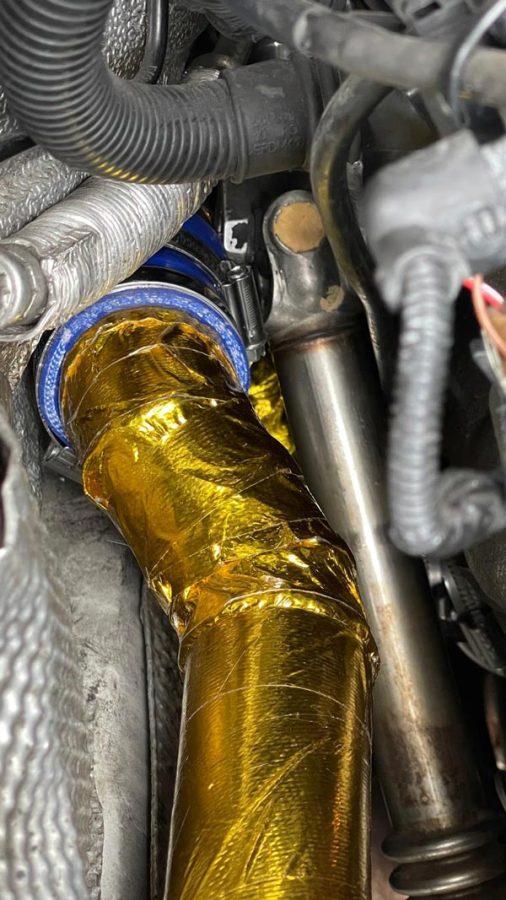

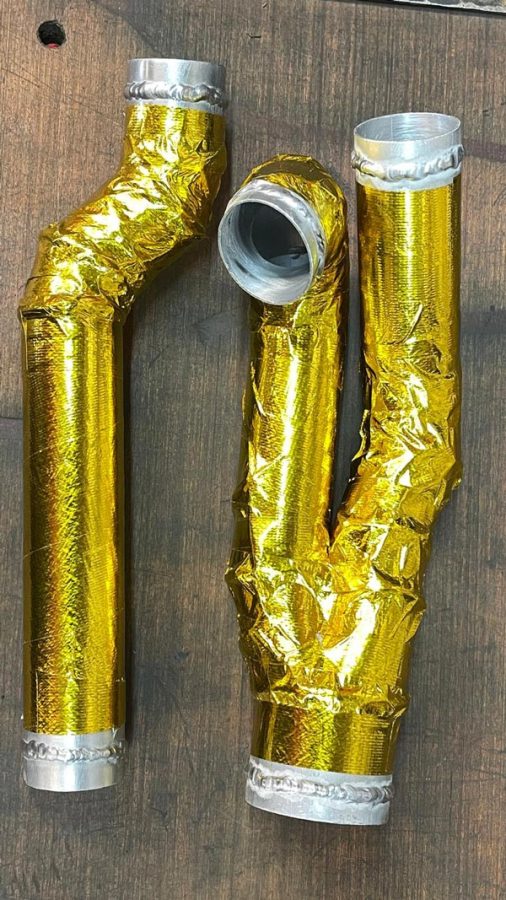

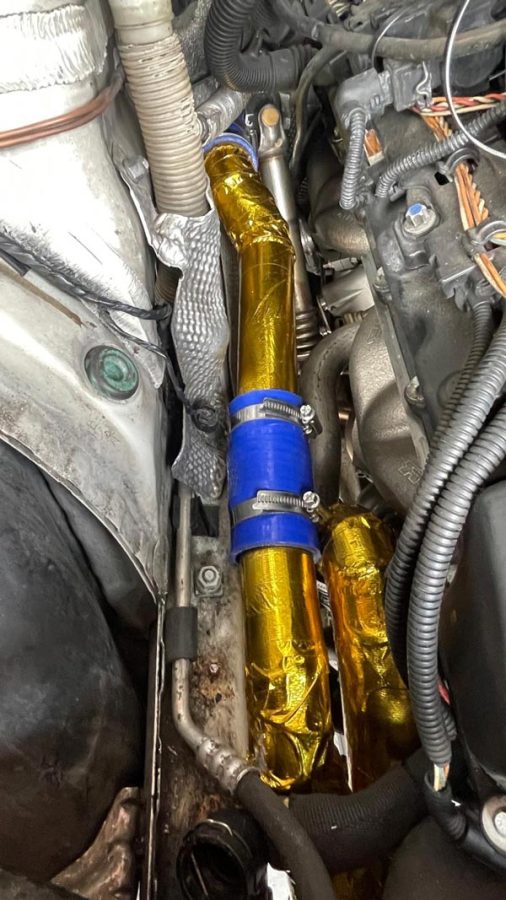

To help protect the new aluminium pipework from radiant heat, we wrapped the fabricated sections in high-temperature insulating material.
This was intended to reduce heat transfer into the charge air and support consistent intake temperatures under load.
The combination of aluminium construction, careful routing and thermal protection provided a more robust solution for the upgraded turbocharger installation.
Why It Matters
This project demonstrates how increasing engine performance can create engineering challenges that cannot always be resolved with off-the-shelf components.
The RB turbochargers offered substantial performance potential, but their different orientation meant the available charge pipe solutions were less than ideal for this right-hand-drive installation.
The existing silicone pipework was exposed to considerable heat, and replacement involved significant dismantling.
By designing a bespoke aluminium system, Kent Motorsport was able to address the underlying installation problem rather than simply accept the limitations of the available aftermarket parts.
The project required:
- An understanding of high-performance turbocharger installations.
- Accurate assessment of restricted engine bay space.
- Complex three-dimensional pipework design.

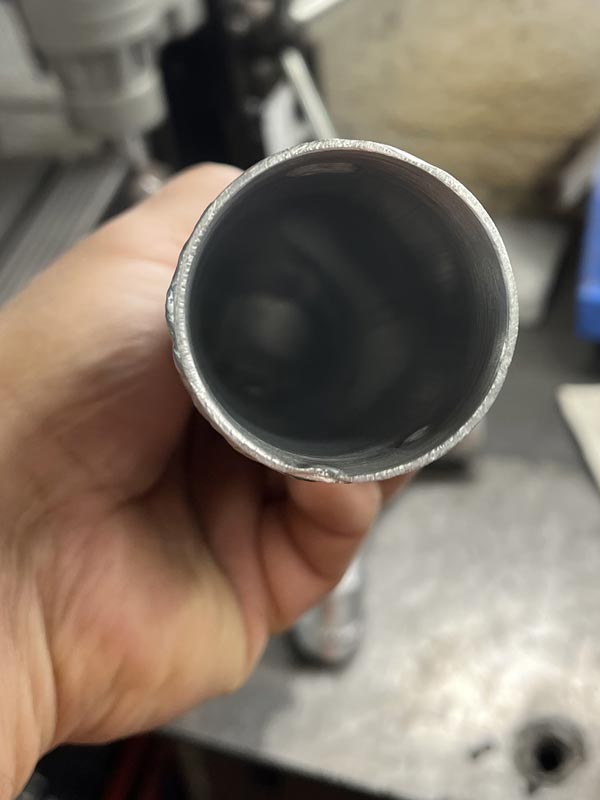

- Precision aluminium cutting and welding.
- Bespoke fabrication of a twin-turbo pipe junction.
- Consideration of vibration and component movement.
- Appropriate thermal protection.
These are the skills that allow ambitious performance modifications to be carried out properly, even when conventional components cannot provide a satisfactory solution.
The Result

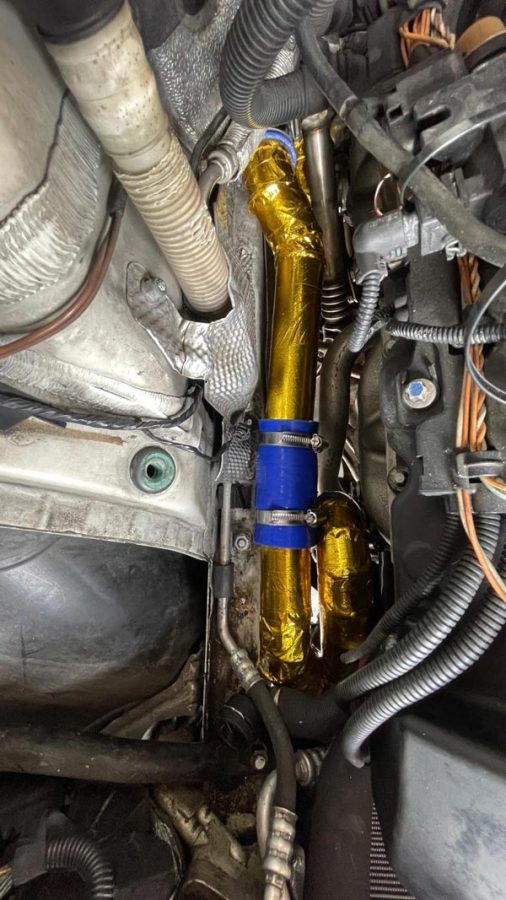

The completed aluminium charge pipe system provides a purpose-built installation designed specifically around the upgraded RB turbochargers and the car’s right-hand-drive configuration.
The new pipework follows the available space around the steering column, maintaining the necessary clearances while connecting both turbochargers to the intercooler system.
The finished installation provides:
- Bespoke aluminium charge pipes accurately fitted to the vehicle.
- Improved durability compared with the previous predominantly silicone arrangement.
- Carefully controlled clearances around the steering column and chassis.
- A custom-fabricated junction connecting both turbocharger outlets.
- Flexible connections to accommodate the installation requirements.
- Additional protection against heat generated by the turbochargers and exhaust.
- A more robust solution for the demands of a high-output N54 engine.
The result is a carefully engineered installation that addresses the limitations of the commercially available pipework and supports the owner’s plans for significantly increased engine performance.
Most importantly, it demonstrates how bespoke fabrication can make complex performance upgrades practical, even where space and component compatibility present significant obstacles.
Project Gallery
The project gallery illustrates the fabrication process and the challenges involved in routing the pipework through the restricted engine bay.
Images show the individual aluminium pie-cut sections, the complex pipe shapes, the bespoke twin-turbo junction and the completed installation.
The photographs also demonstrate the limited clearance around the steering column and the attention to detail required to produce a system that fits accurately.
