The Vehicle
Vehicle: Porsche 944 GTS
Project Type: Classic Car Panel Fabrication and Corrosion Repair
Services Provided:
- Bespoke panel fabrication
- Classic car corrosion repair
- MIG and TIG welding
- Panel alignment and assembly
- Preservation of original design features
The front panel forms an important part of the car’s appearance, but on this model it also incorporates functional ventilation for the intercooler. Preserving these details was essential to maintaining both the character and correct specification of the vehicle.
Customer Requirements
The client required the heavily corroded section of the front panel to be replaced while retaining the original GTS features.
The completed panel needed to:
- Remove all extensively corroded metal.
- Retain the original intercooler ventilation openings.
- Preserve the correct Porsche badge position.
- Match the dimensions and profile of the original panel.
- Remain straight and free from heat distortion.
- Be ready for final preparation, painting and installation.
Because an original replacement GTS panel was extremely difficult to source, the solution required combining sections from two separate panels.
The Challenge
The main challenge was replacing the corrosion without losing the features that made the original panel specific to the GTS.
The ventilation openings and badge mounting could not simply be removed and repositioned approximately. Their dimensions, spacing and relationship to the surrounding bodywork had to remain consistent with the original panel.
The front panel was also formed from relatively thin sheet metal. Excessive heat during welding could easily cause it to distort, affecting its shape, alignment and eventual fit on the vehicle.
The repair therefore demanded accurate measurement, careful cutting and a controlled welding process.
Engineering Approach
The most effective solution was to use a sound front panel from another Porsche 944 as the basis of the repair and incorporate the original GTS-specific sections into it.
Both panels were brought into the Kent Motorsport workshop so they could be measured and compared directly.
The replacement panel provided the sound structure required, while the original panel supplied the model-specific vents and badge section that needed to be preserved.
Careful planning was essential before any cutting began. Each cut line had to be positioned so that:
- All corroded material was removed.
- The original GTS features remained intact.
- The replacement sections could be accurately joined.
- The finished panel retained its original proportions and profile.
Work Carried Out
Panel Measurement and Preparation

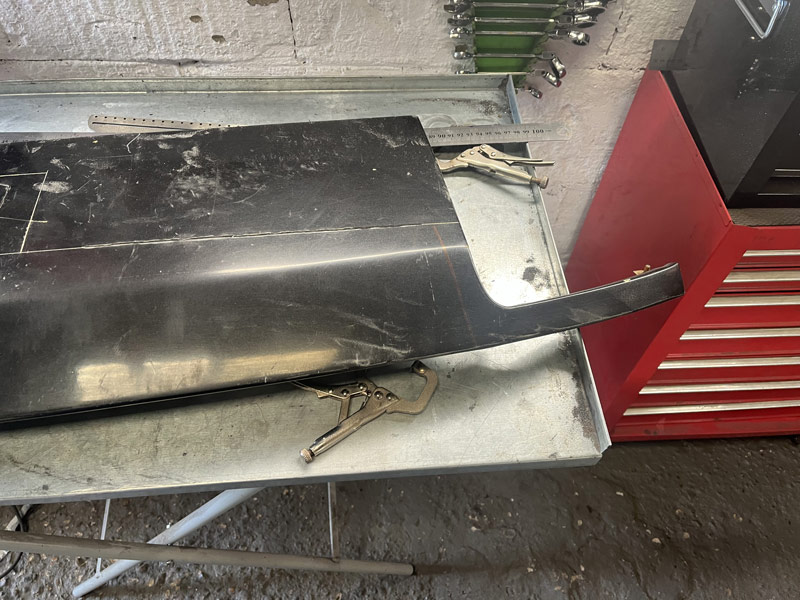

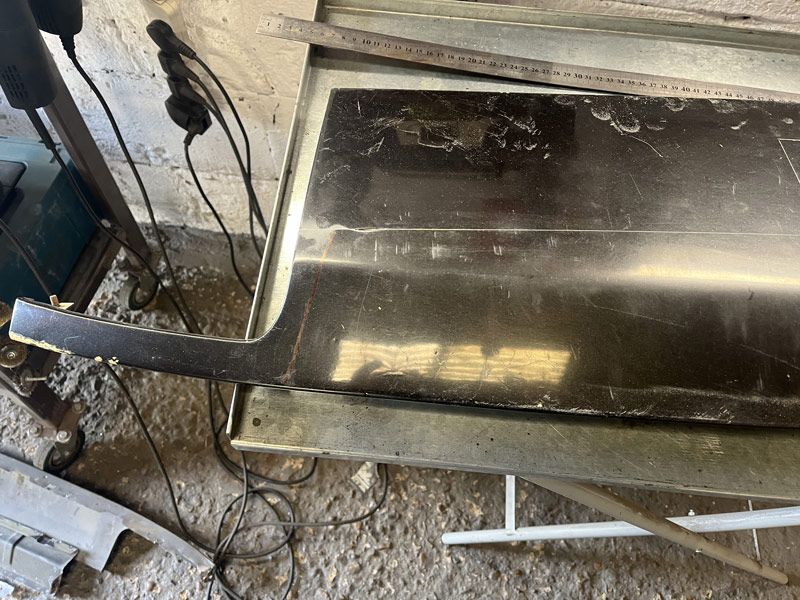

The original and donor panels were carefully measured to establish matching reference points and accurate cut lines.

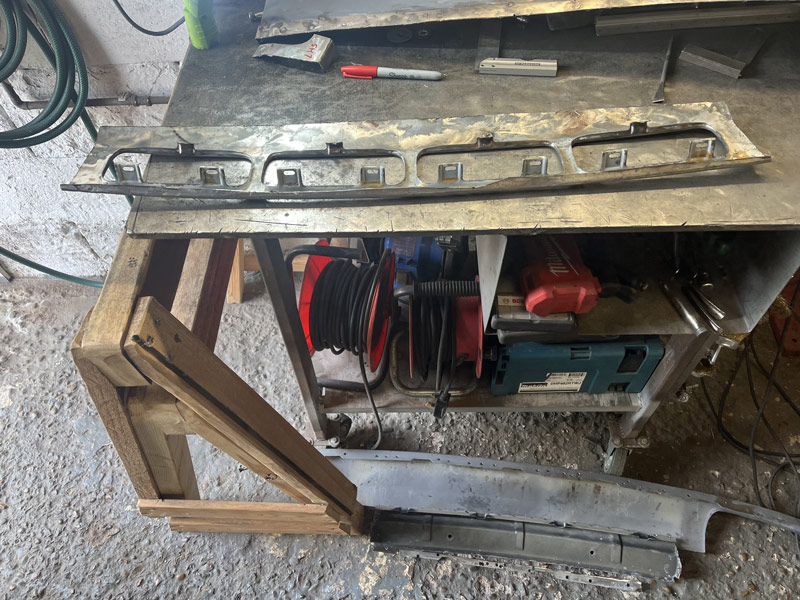

Both panels were then cut in corresponding positions, allowing the sound sections of the donor panel to replace the corroded metal while retaining the original GTS vents and badge mounting area.
Panel Assembly
Once the individual sections had been prepared, they were brought together to create the final composite panel.

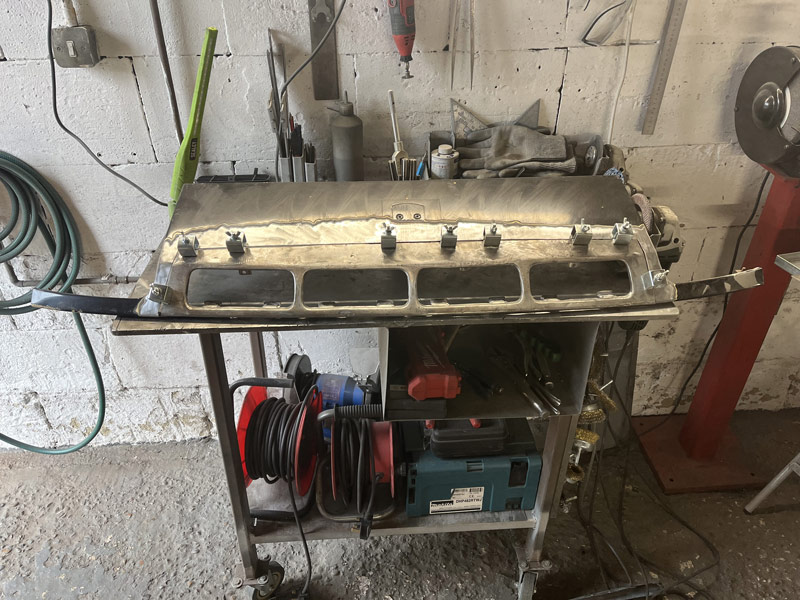

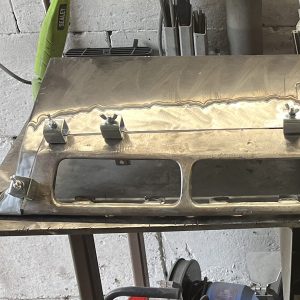

Specialist panel-holding tools were used to maintain accurate alignment and keep the sections securely positioned. The joints were then tack-welded gradually, allowing the dimensions and profile to be checked before the full welding process was completed.
Controlled Welding
Managing heat input was one of the most important parts of the project.
Long, continuous welds would have introduced too much heat into the sheet metal and risked warping the finished panel. Instead, the welds were completed progressively and in controlled stages.
Both TIG and MIG welding techniques were used where appropriate, enabling the team to achieve strong, precise joints while minimising distortion.
The panel was repeatedly checked throughout the process to ensure that it remained correctly aligned and retained the required shape.
Why It Matters
This project demonstrates the difference between routine panel replacement and genuine bespoke fabrication.
When original panels are unavailable, replacing an entire component is not always possible. Equally, fitting a generic alternative could remove the details that define a rare or specialist vehicle.
By combining the sound structure of a donor panel with the original GTS-specific features, Kent Motorsport was able to preserve the authenticity and functionality of the car while removing the extensive corrosion.
The work required:
- Careful assessment of the original component.
- Accurate measurement and cutting.
- An understanding of thin-sheet fabrication.
- Controlled heat management.
- Proficiency in both TIG and MIG welding.
- Continuous checking to prevent distortion.
These are precisely the skills required when working with classic and historic vehicles for which replacement parts may be scarce, unavailable or unsuitable.
The Result
The completed front panel retains the original Porsche 944 GTS ventilation openings and badge position while replacing the heavily corroded surrounding metal with sound material.
The result is a structurally solid and accurately assembled panel that:
- Preserves the model-specific GTS features.
- Maintains the correct original dimensions.
- Retains the required intercooler ventilation.
- Remains straight and free from significant heat distortion.
- Is ready for final body preparation, painting and installation.
Rather than compromising with an unsuitable replacement, the client now has a carefully fabricated panel that preserves the identity and specification of the car.
Project Gallery
The project gallery documents each stage of the fabrication process, including:
- The corrosion present on the original panel.
- The original and donor panels before cutting.
- Measurement and preparation of the sections.
- Alignment and tack welding.
- The progressive welding process.
- The completed front panel ready for finishing.
These images provide a clear demonstration of the precision and craftsmanship involved in producing the finished component.
