Suspension Setup

Kent Motorsports new suspension set up equipment

Suspension Project VW CUP

Suspension Project VW CUP 800 800 Kent Motorsport

We have further updated our tools to help enhance the accuracy in setting up race car suspension geometry. For full geometry and corner weight setup, we now use Stand Hubs. These allow easy access to tune the suspension and also eliminate any possible inaccuracy in measurements that may arise from distortion in the tyres.

These images show the Limitless Motorsport VW Cup car being set at our workshop. Our new stand hubs are being used for suspension set up. The car was described as feeling nervous on the track. Our measurements showed this was mainly due to the suspension having extreme negative camber and toe-out settings that were not needed.

After our adjustments to the suspension for toe and camber, the handling of this track car has massively improved. It has made the drivers of this car much more confident behind the wheel.

Yaser with an alignment measurement tool

Kent Motorsports can give you an FTD (almost!)

Kent Motorsports can give you an FTD (almost!) 348 261 Kent Motorsport

Below is an article reproduced from the Sevenoaks and District Motor Clubs magazine (Acorn) about Yaser and Kent Motorsport.

I first met Yaser Almaghrbi at the 2018 TWMC awards evening. Yaser is the founder of Kent Motorsport, he explained to me how he builds and rents out race cars. I was intrigued by his detailed knowledge of race car set up.

As many people who will have seen my woeful performance at the September SDMC Autosolo could attest from a distance, my MX5 handles really badly. In the final event of last year I was second in the MX5 class going into the last round, but made some silly mistakes so Paul Hebden beat me. However, I had proved (to myself at least) that I am potentially capable of doing well. This year began with disaster and got worse. I had been busy during the day playing guitar with Sterling Ernstzen’s daughter, Claudine, so hadn’t got round to preparing the car until the evening. I was putting on my set of wheels with Uniroyal Rainsport tyres (which seem de rigeur among MX5 Autotest competitors these days), when I noticed ne had a nail through it and it was too late to get it fixed! So I fitted my absolutely rubbish set of tyres I bought for £100 (including wheels) for sacrificial use at the Crystal Palace Autotest demonstration. Needless to say they had absolutely no grip at all and after the first run on the rally course I was the second slowest car in the field. As the rain eased off and the track dried out a bit I managed to get up to the middle of the results, not very impressive. After the event, I reflected on the appalling handling of the car, particularly the terrible understeer and recalled that a lot of work had been done on the car since I last had the wheel alignment checked properly. Paul Hebden had arranged for his local MOT station to have a look, but they had only used standard settings, not allowing for motorsport use.

Yaser keeping notes of setting changes to compare against performance
Yaser keeping notes of setting changes to compare against performance

Although I have used at least five different professional setup companies in the past who claim to understand the needs of motorsports, I have never been impressed by any of them as I could hardly tell the difference before and after. (Paul Hebden has pointed out this may be because some bolts may be seized and they can’t be bothered to fix them so actually make very few changes. Paul Kindly freed off all the bolts for me). I remembered my meeting with Yaser and so gave him a call to arrange a setup.

One of the many things that really impressed me about Yaser (quite apart from the fact that he is really friendly and provides tea and biscuits during the setup), was that he gave me full visibility of the process, showing how he was measuring to half-millimetre accuracy and let me confirm the results to my own satisfaction. He uses two different measurement systems to cross check for any errors.

Yaser comparing two sets of measurements
Yaser comparing two sets of measurements

Having listened to my description of the shortcomings of the cars current handling and what I wanted to change in performance terms, he gave me different options for the front and rear setup, explain the benefits of the changes and how they would feel if we got to more extreme settings. This enabled me to judge what I was prepared to live with on a daily-driver basis in order to get the required track performance. In the end we decide to go quite extreme. Immediately on the road I could feel the front end was much more responsive and able to take greater steering lock angles before understeering, without being too twitchy in the straight ahead position. The rear end had been unwilling to rotate or break away even when pushed hard on tarmac, but now was very easy to provoke into oversteer. I had a moment coming off a roundabout so might dial that back a bit. Yaser is very supportive and is keen to help me on the journey to getting the setup as I want it, pointing out that it would take some trial-and-error changes to meet my personal tastes.

Amazing results at the CSMA Autumn Autotest!
Amazing results at the CSMA Autumn Autotest!

The real test came the following day at the CSMA Autumn Autotest at Dunstable. I have had four class wins at this venue in the past in the MX5, but have always been way behind the pace of the FTD winning FWD cars of Bryan Sharpe and Mike Biss. On this occasion it was pouring with rain and many areas of the field were just liquid mud mixed with some grass. Normally, when there is just damp grass FWD cars have the advantage, only when it gets drier are RWD cars able to compete. Therefore, I expected my trusty navigator and fellow MX5-driving competitor, Sue Gibbard, to be flat last. I did teach Sue a trick (which I will keep from delicate Acorn readers and pesky future rivals) that gave us both an edge over all the other drivers but I really believe that Yaser’s setup on my car gave me a massive improvement in handling. In the end I finished second overall in a field of 18!, even beating Mike Biss who has in turn beaten Bryan Sharpe to FTD in the past. That is the closest I have been to an FTD, cant wait to try it on tarmac at the Lydden Autosolo. Sue managed a quite stunning 9th place in the treacherous conditions. Just think what she could have managed with a Kent Motorsports setup!

You can contact Yaser so that he can give you FTD-winning potential at [email protected] 07812 673 272.

If you want to contact Sue to book her as a co-driver for a future event – you can’t! I am keeping her excellent navigational and competitive motivation skills to myself!

Race winning Honda Civic race car suspension setup

Honda Race Car Suspension Set Up

Honda Race Car Suspension Set Up 680 510 Kent Motorsport

We were entrusted with the suspension setup on two Racing Honda Civics. The cars were rebuilt and prepared by Snodhurst Garage for racing in the Classic and Modern Motorsport Club (CMMC) Southern Saloon Car Series.

Honda Civic race car suspension setup
Honda Civic race car suspension setup

After first measuring the corner weight balancing the suspension was set up for racing. Further tweaks to the suspension were made following testing on the track.

Unfortunately, on race day, one of the cars was not able to start due to last-minute gremlins. The other car was raced at Brands Hatch GP circuit by Kam Tunio. Kam felt so comfortable with the car that he was able to push hard taking two class wins on the day and recording the fastest ever lap time for the Tin Top series at the GP circuit.

Kam set a time of 1:44.886, with the 1600cc Civic, beating all the cars in the Tin Tops classes to win race one. Finishing in 2nd place in the Tin Tops in race two showed just what a difference a well set up suspension can make.

Honda Civic race car suspension setup
Honda Civic race car suspension setup
Porsche Roadster suspension set up

Porsche Roadster Suspension Setup

Porsche Roadster Suspension Setup 680 510 Kent Motorsport

We were trusted to look into the handling problems of this lovely Porsche Roadster. The driver was complaining that the car felt very nervous when driving straight. The car would dart right or left depending on the road and he had to make adjustments on the steering.

Porsche Roadster suspension set up
Porsche Roadster suspension set up

We performed a four-wheel alignment and found that the front wheels were both toeing massively, one in and the other out. This meant that the steering, though pointing straight, had both front wheels pointing outwards. It made the car dart to either side as both wheels tried to go in the direction they were pointing. We then fixed this issue by adjusting the alignment. The feedback we received afterwards was:

…the car drives now as I expect it to, the handling is beautiful.

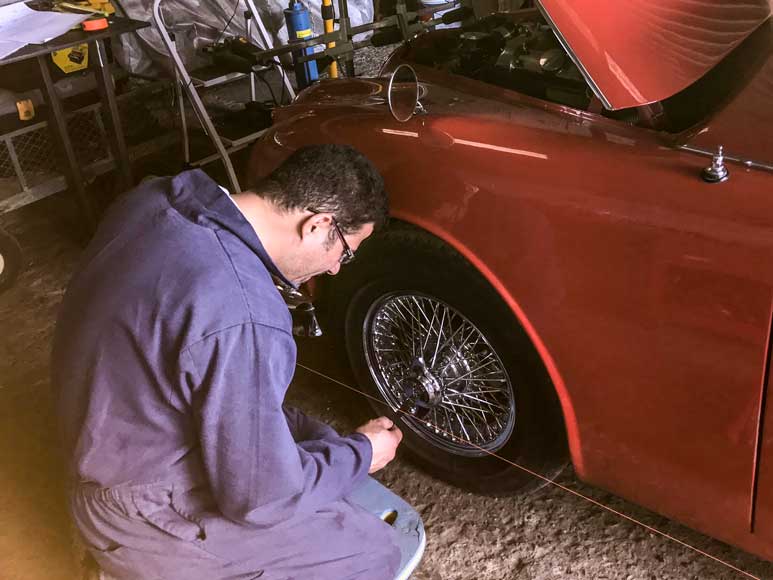

Yaser working on the Jaguar Mk2 suspension set up

Jaguar Mk2 Suspension Setup

Jaguar Mk2 Suspension Setup 773 580 Kent Motorsport

The owner of this MkII Jaguar brought it to us complaining about the wheels rubbing on the inside when turning on full lock. The driver felt the car to be nervous on right-hand corners.

We suspected that the Toe is completely out of alignment on the front wheels and so performed a four-wheel alignment. Our suspicion was correct as we found the left front wheel had an excessive toe-in. We adjusted the toe on both wheels to zero toe.

Jaguar Mk2 suspension set up
Jaguar Mk2 suspension set up

We saw the owner a couple of days later with a big smile on his face. He reported that the car now handles nicely and there is no more rubbing when the steering is on full lock.

Lotus Exige Sprint Car Suspension Setup

Lotus Exige Sprint Car Suspension Setup 680 491 Kent Motorsport

We have just set up the suspension for this Lotus Exige sprint car. The weight distribution was slightly off and the toe settings were sub-optimal on the front.

On the track, the car was said to be slightly twitchy in the back and had slight understeer. After a few iterations of suspension amendments, we achieved the ideal weight distribution and toe setting for the front and managed to reduce the rear bite substantially.

Both drivers are competing in the TWMC All Circuit Championship and were very happy with the suspension setup. Their feedback was positive

All is going well and handling nicely.

Lotus Exige owner
Mini R53 strack day car

Mini R53 New Suspension Setup

Mini R53 New Suspension Setup 680 490 Kent Motorsport

We recently had this Mini R53 referred to us for suspension and corner weight setup. The car had new TRW suspension struts and springs installed but was handling worse on the track. It was also suffering from overheating of the rear left tyre.

Mini R53 suspension set up work

Kent Motorsport was trusted to look at the suspension setup. Our inspection found that the car was not balanced and the toe was off for the front and especially the rear left tyre. After many rounds of minor adjustments we achieved the desired corner weight balance and then worked on having a neutral setup with light toe out front and rear and slight negative camber.

Following these adjustments, the feedback that we received was very positive.

“It transformed it…It felt great and really planted, thank you again, top job!”

Mini R53 owner
