The Vehicle
Vehicle: VW Cup Race Car
Project Type: Race Car Suspension Setup
Services Provided:
- Suspension assessment
- Steering geometry analysis
- Corner weighting
- Camber adjustment
- Toe adjustment
- Chassis optimisation
Customer Requirements
The team wanted to understand why the car lacked confidence on track.
Rather than making changes based on trial and error, they wanted an accurate assessment of the suspension geometry and a setup that would deliver predictable handling and allow the drivers to push the car with confidence.
Precision Suspension Analysis

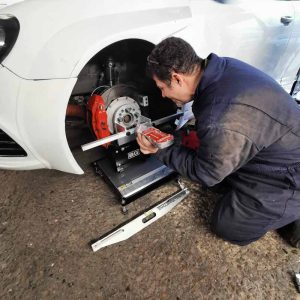

To carry out the setup, we used our professional suspension geometry equipment together with our recently introduced stand hubs.
Unlike conventional alignment methods that rely on the tyres remaining perfectly consistent, stand hubs attach directly to the vehicle’s hubs. This removes the influence of tyre distortion and allows highly accurate suspension measurements while providing unrestricted access to suspension adjustment points.
This level of precision is particularly valuable when working on competition cars, where even small geometry changes can have a noticeable effect on vehicle behaviour.
Diagnosing the Problem
Our measurements quickly identified the source of the handling issues.
The front suspension had been set with excessive negative camber and significant toe-out—settings that were considerably more aggressive than the vehicle required.
Although these adjustments are often made with good intentions, geometry that is too extreme can reduce stability and make a race car feel nervous, particularly during high-speed cornering and heavy braking.
Rather than improving performance, the existing setup was making the car more difficult to drive consistently.
Optimising the Chassis
With accurate measurements established, we adjusted the suspension geometry to suit both the vehicle and its intended use.
The work included:
- Suspension inspection
- Geometry analysis
- Camber optimisation
- Toe adjustment
- Chassis balance assessment
Every change was made with the objective of creating a stable, predictable platform that would allow the drivers to exploit the car’s full potential.
Why It Matters
Suspension geometry has a significant influence on the way a race car behaves.
Even relatively small changes to camber or toe can alter:
- Steering response
- Corner entry stability
- Mid-corner balance
- Braking confidence
- Tyre wear
- Driver confidence
This project highlights the importance of accurate measurement and informed engineering decisions. Without understanding the data, it’s easy to make adjustments that appear logical but actually reduce the car’s performance.
Using precision equipment and motorsport experience allows us to identify these issues and develop a setup based on evidence rather than assumption.
The Result
Following the suspension adjustments, the transformation in the VW Cup car was immediately noticeable.
The nervous handling was eliminated, giving the drivers a far more stable and confidence-inspiring car on track.
By reducing the excessive camber and toe-out to more appropriate settings, the chassis became significantly more predictable, allowing the drivers to push harder with greater consistency.
The result was not simply improved suspension geometry—it was a race car that inspired confidence and performed as it should.
